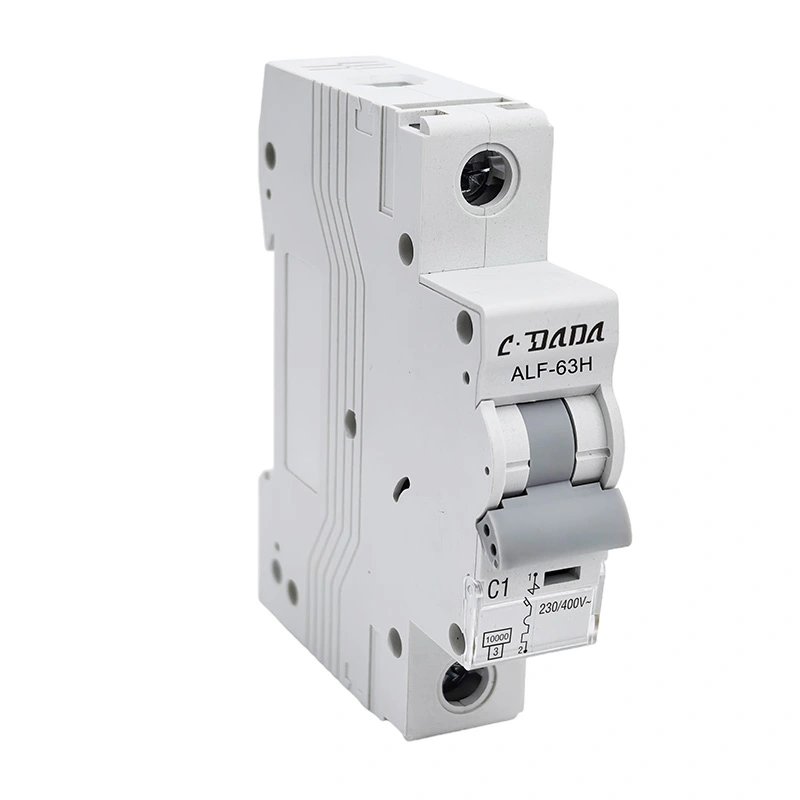

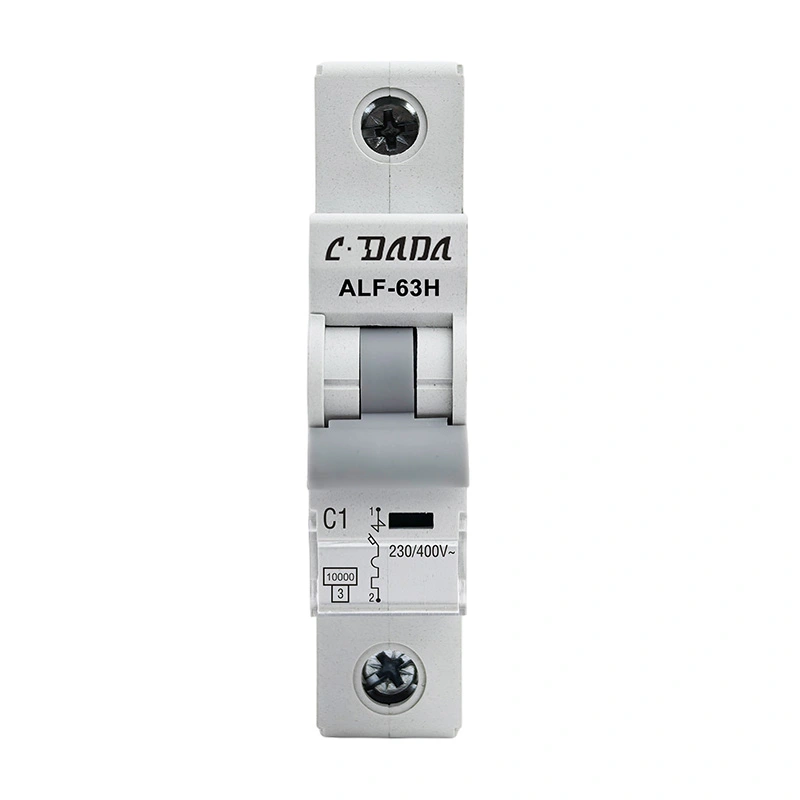

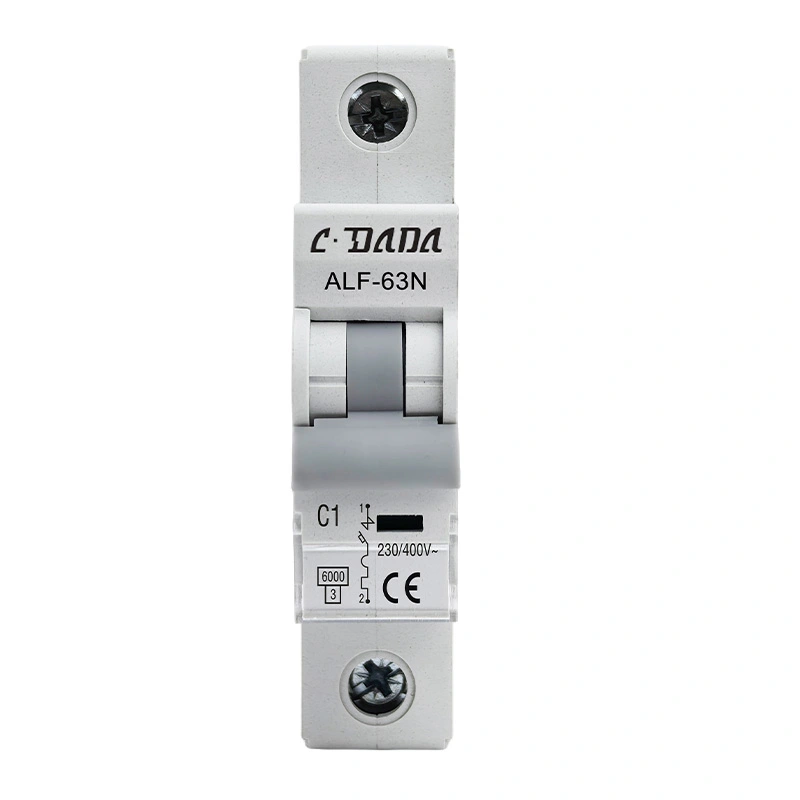

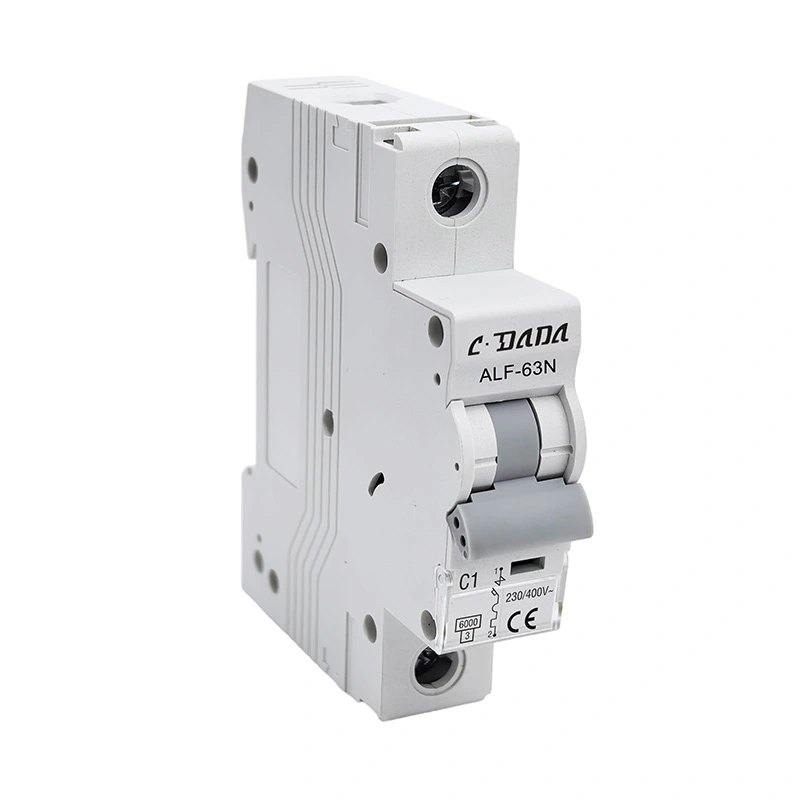

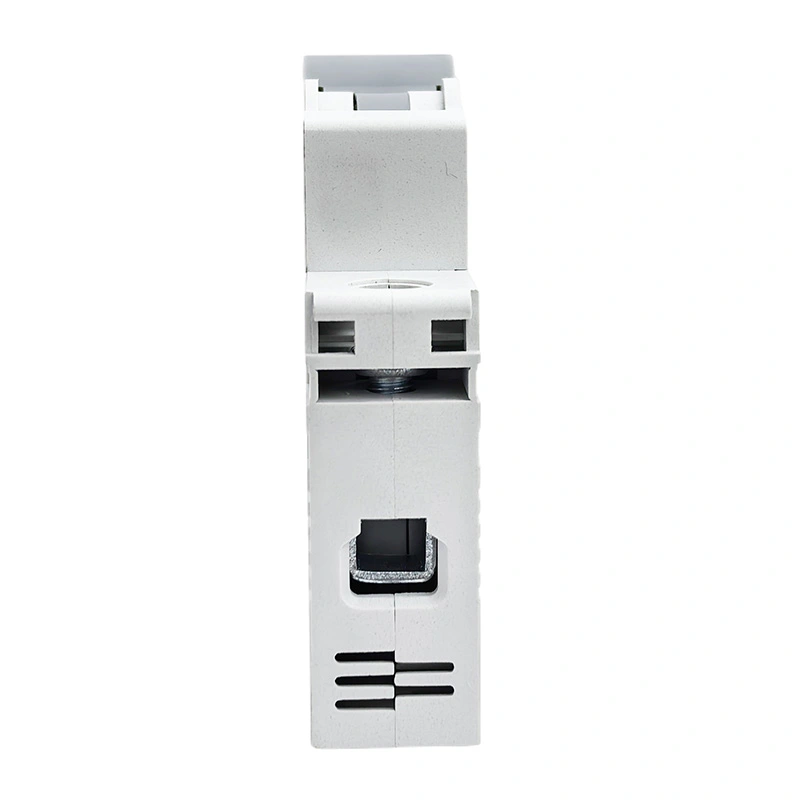

6KA 10kA miniature circuit Breaker

ALF-63N / H usoro elu na-agbaji 6KA 10kA Miniature Circuit Breaker (MCB), kwekọrọ na ọkọlọtọ IEC60898, MCB nwere njirimara nke arụmọrụ a pụrụ ịdabere na ya, ọrụ nchebe ziri ezi, oge ntọhapụ dị mkpirikpi, na ikike ezumike dị elu, obere olu. A na-eji ya eme ihe n'ọtụtụ ebe na ndị na-ahụ maka kọntaktị, switchgear, na ngwa eletriki.

Kpọtụrụ CDADA wee họrọ anyị ka onye nrụpụta gị, anyị nwere ike ịnye ọrụ OEM/ODM.

Usoro njirimara

Nkọwa nka nka

ALF-63N/H Series 6KA 10kA Miniature Circuit Breaker
Ọkọlọtọ	EN/IEC60898-1
Ike imebi (kA)	6,10
Nchedo	Megide oke ibu na sekit dị mkpụmkpụ
Enyere ugbu a (A) In	1,2,3,4,6,10,13,16,20,25,32,40,50,63
Obere voltaji (V)	1PAC 230/400,240/415
	1P+N,2P,3P,3P+N,4PAC400/415
Uimp(kV) akwadoro mkpali na-anagide voltaji	4
Voltaji mkpuchi mkpuchi Ui(V) akwadoro	500
Cass na-egbochi ike ike	3
Ọnọdụ okpomọkụ (℃)	-25~+40,Max.95% iru mmiri
Oke arụ ọrụ ọkụ	1.13xln Enweghị ntupu n'ime otu elekere
	1.45xN'ime njem n'ime otu elekere
Magnertic arụ ọrụ	B: (3-5) xN, C: (5-10) xN'ime, D: (10-20) xN
Ọnụọgụ mkpanaka	1P,1P+N,2P,3P,3P+N na 4P
Ụdị njem	Thermal/magnetic mwepụta
Ike njedebe	16mm² mgbanwe ma ọ bụ 25mm² siri ike ruo ọkwa 25A
	25mm² mgbanwe ma ọ bụ 35mm² kwụsiri ike site na ọkwa 32A ruo 63A
ogo nchedo	IP20
Nwụnye	Ịkwanye na 35mm DIN okporo ígwè
Obosara	17.8mm kwa osisi

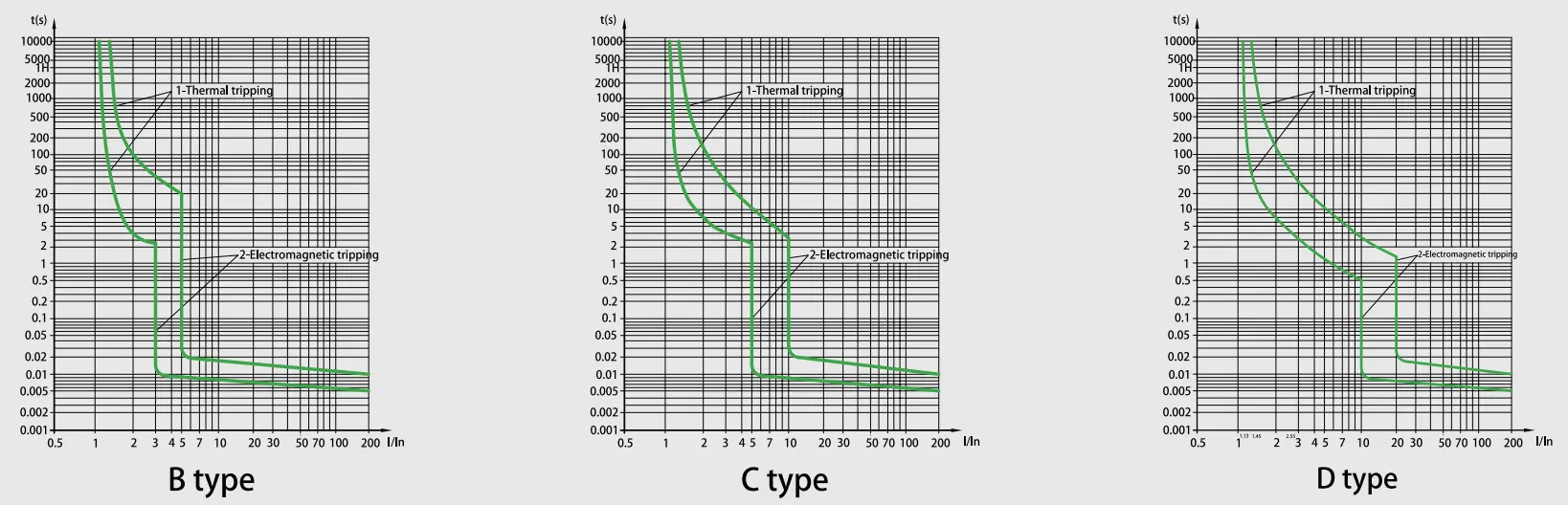

Njirimara ntọhapụ sekit

Mba.	Ntọhapụ agbagoro ogo ugbu a (A)	Ala izizi	Nwalee ugbu a	Oge akọwapụtara	Nsonaazụ ga-enweta	Okwu
1	1-63	ọnọdụ oyi	1.13 n'ime	t≤1h	Enweghị njem
2	1-63	n'elu ule gara aga	1.45 n'arọ	t <1h	njem	Ịtọlite ​​ugbu a ka ọ bụrụ uru a kapịrị ọnụ na 5s
3	N'ime ≤32	ọnọdụ oyi	2.55 n'ime	1s	njem
	Na> 32
4	1-63	ọnọdụ oyi	3N'ime	t≤0.1s	Enweghị njem	Ụdị B
			5N'ime	t <0.1s	njem	Ụdị B
			5 n'ime 10 ln	t≤0.1s	Enweghị njem	Ụdị C
			10N'ime	t <0.1s	njem	Ụdị C
			20 ln	t≤0.1s	Enweghị njem	Ụdị D
				t <0.1s	njem	Ụdị D

Ntachi obi(ọrụ)

Otu	Usoro ọrụ	Ugboro ugboro	Enyere ugbu a
Ntachi obi eletrik	4000	240/h	1-32
		120/h	40-63
Mechanical ntachi obi	10000	240/h	1-63

Atụmatụ

★ Ultra-High Short-Circuit na-agbaji ike

Teknụzụ njikwa arc dị elu na-enweta ikike nkwụsịtụ dị elu ma e jiri ya tụnyere ụkpụrụ ụlọ ọrụ, na-ahụ maka nchekwa a pụrụ ịdabere na ya maka sistemụ eletriki ụlọ ọrụ mmepụta ihe n'okpuru ọnọdụ mmejọ dị oke njọ.

★ Dual-Mode Njikọ Interface

Ngwakọ ọnụ ọnụ ọnụ ọnụ ọnụ na-akwado ma ọdụ ụgbọ mmiri siri ike yana njigide eriri na-agbanwe agbanwe, na-eme mgbanwe na-enweghị ngwaọrụ na ọnọdụ nrụnye dị iche iche ma na-ebelata oge wiring site na 40%.

★ Usoro Nchekwa Ike Maka Ogologo Ndụ

Sistemu ọrụ enyemaka oge opupu ihe ubi nwere ntachi obi 10,000 igwe, na-egosipụta teknụzụ nkwụghachi ụgwọ.

★ Advanced mejupụtara ogige

nwere ihe ama ama-retarcant, okpomoku na-eguzogide, yana ihe na-egosi mkpali agbakwunyere ọnụ ụlọ na-emenyụ ọkụ maka mmemme mmejọ nwere.

★ Topology na-egbochi oke ugbu a

Mwepu nke ọgụgụ isi site na mbelata ume na-ebelata mmịpụta kacha elu site na 65-80%, na-eme ka njikarịcha ngwaọrụ dị n'okpuru ya na ikike mbelata ọnụ ahịa sistemu 30%.

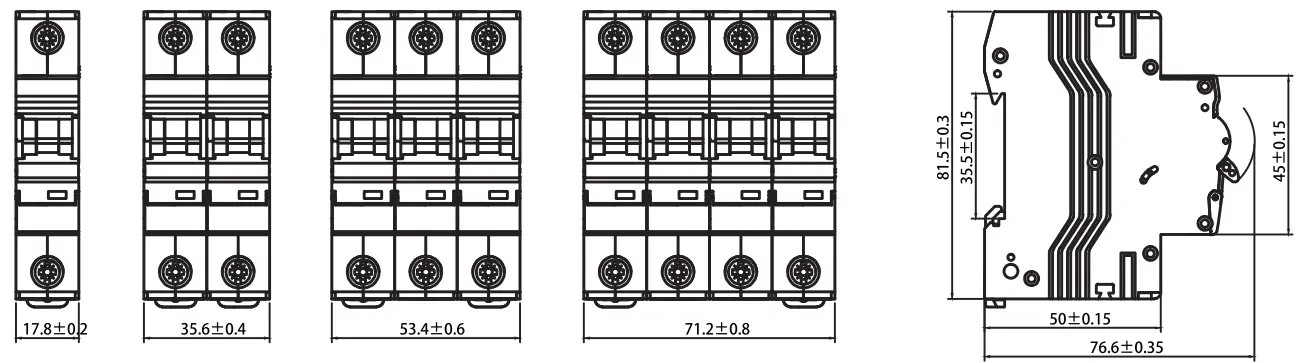

Ndepụta akụkụ

Ihe ngosi ngwa

★ Residential: Consumer units na nkesa mbadamba maka n'ụlọ nchekwa.

★ Industrial: Nchedo nke contactors, switchgear, na arọ electric ngwa.

★ Commercial: Office ụlọ na ịzụ ahịa malls chọrọ elu-na-agbasa ntụkwasị obi.

Njikwa ogo & Nnwale ọkọlọtọ

★ CDADA MCB ọ bụla na-enweta ule siri ike iji hụ na nnabata na IEC60898-1:

★ Thermal Tripping Test: Ekwenyere na 1.13In (na-abụghị njem) na 1.45In (njem n'ime 1 hour).

★ Nnwale Tripping Magnetik: Nnwale ntọhapụ ziri ezi maka njirimara B, C, na D.

★ ntachi obi eletrik: A nwalere maka okirikiri ọrụ 4,000.

★ Mechanical ntachi obi: Ekwenyere maka 10,000 okirikiri.

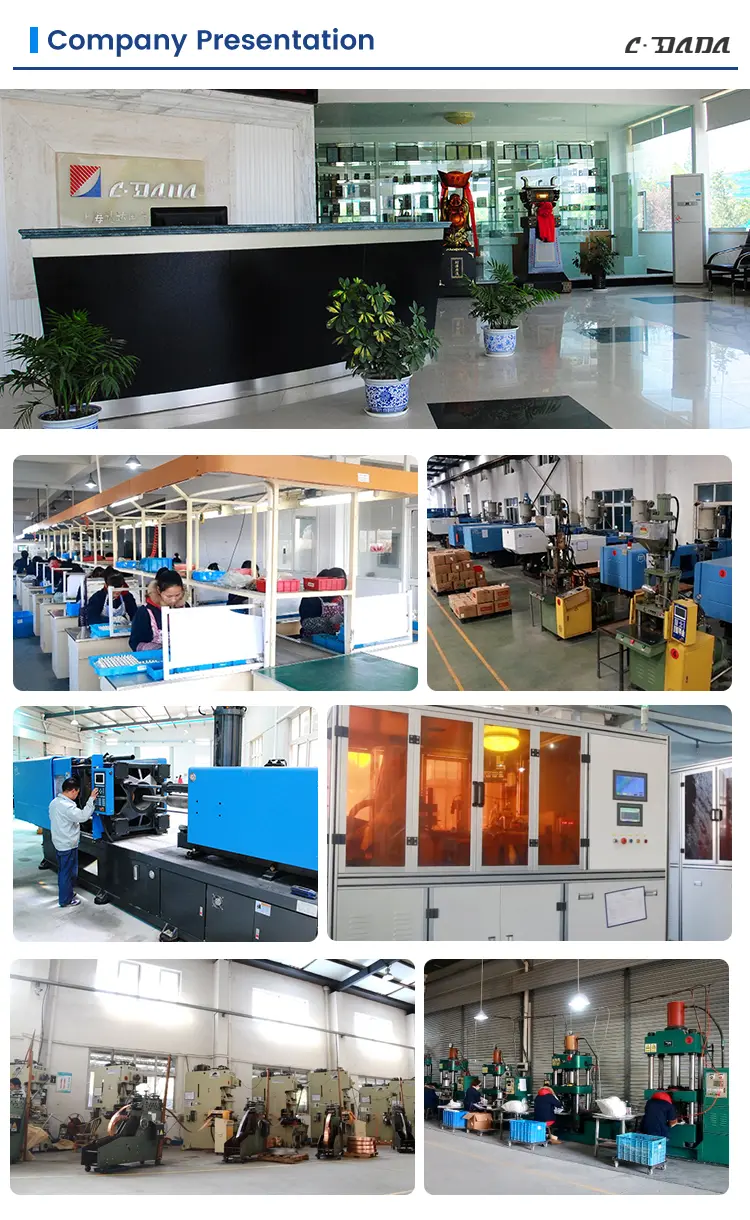

Ike Factory & Nkwado

Shanghai DADA Electric Co., Ltd bụ onye nrụpụta na-eduga na ahịrị mmepụta dị elu yana otu ndị injinia ọkachamara. Anyị na-enye:

★ ahaziri OEM/ODM maka ụdị ụwa.

★ Ọkachamara ule akụrụngwa iji hụ na nnyefe efu efu.

★ Global Logistics Nkwado: Kachasị nkwakọ maka oké osimiri na ikuku ibu iji hụ na ngwaahịa na-abata na zuru okè ọnọdụ.
