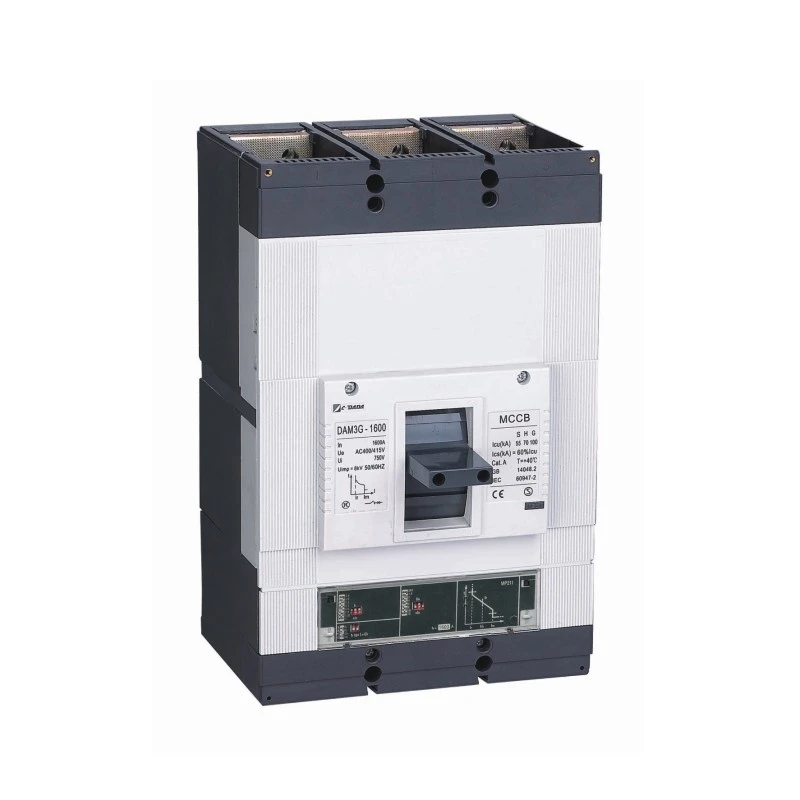

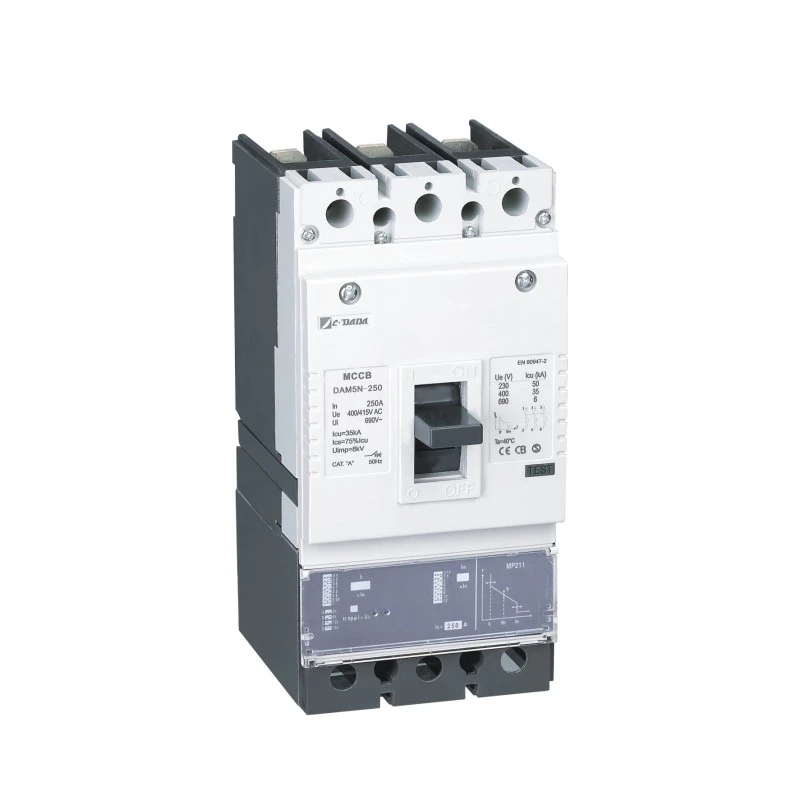

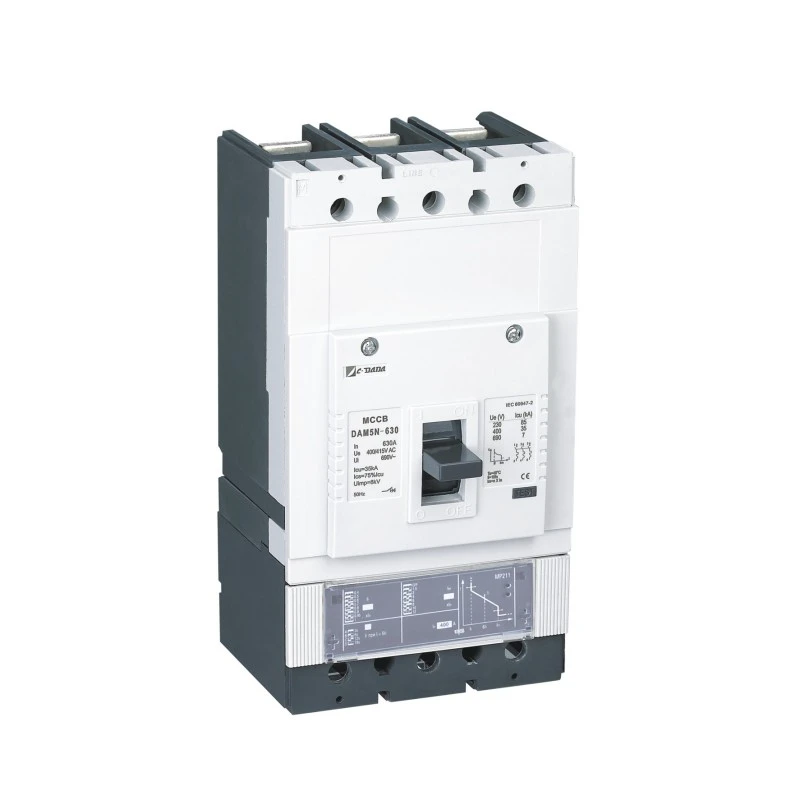

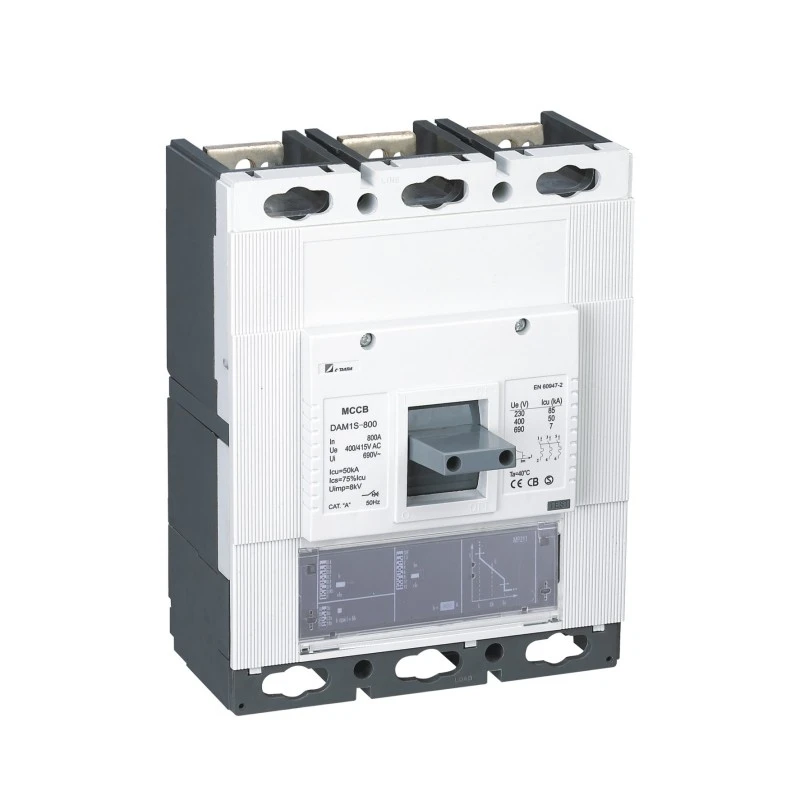

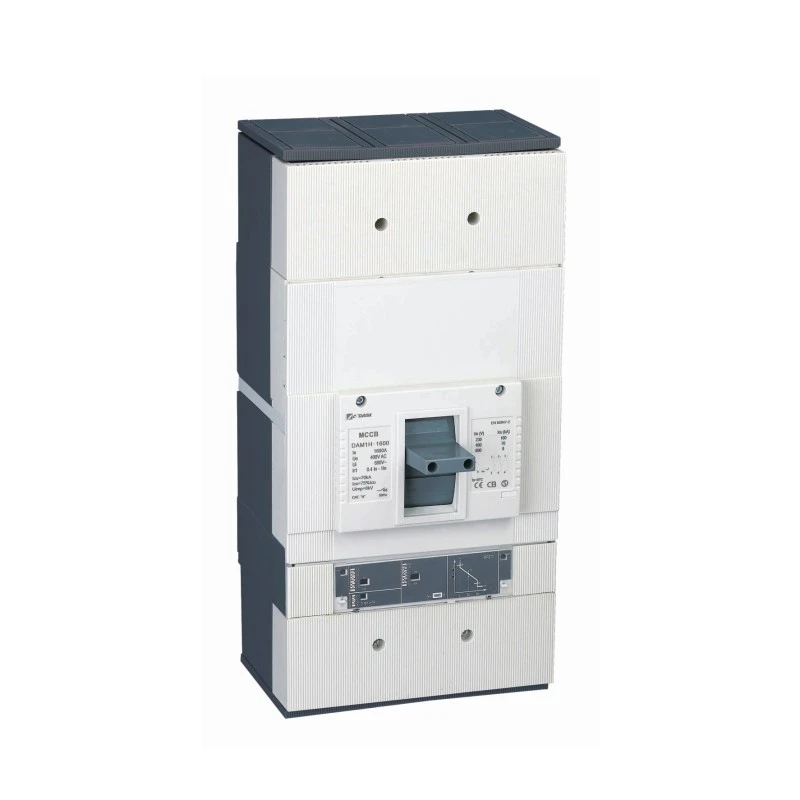

Ụdị eletrọnịkị kpụziri ikpe sekit

Maka sistemụ ike ọgbara ọhụrụ na-achọ nkenke, ọgụgụ isi, na ntụkwasị obi, Igwe eletrọnịkị Ụdị Molded Case Circuit Breaker nke Shanghai DADA Electric CO., LTD. na-esetịpụ ọkọlọtọ ọhụrụ na nchekwa obere voltaji. N'adịghị ka ndị na-agbaji ọkụ magnetik ọdịnala, MCCB a nwere ọgụgụ isi na-eji nkeji njem eletrọnịkị nke dabere na microprocessor iji wepụta oke ezighi ezi, ihe nchebe nwere ike ime ka ọ bụrụ ihe na-eme ka ọ bụrụ ihe na-egbochi ọnọdụ okpomọkụ.

Site na ntọala a na-agbanwe agbanwe site na 40% ruo 100% Na (thermal) na 1.5 × na 12 × In (magnetic), ọ na-enye mgbanwe na-enweghị atụ maka nhazi mgbagwoju anya na ebe data, ụlọ ọrụ mmepụta ihe, ụlọ ọgwụ, na usoro ume ọhụrụ. Enyere ya site na 100A ruo 1600A na 400V/415V, ọ na-ejikọta nhazi kọmpat na arụmọrụ dị elu-ma na-agụnye njem nlegharị anya na-adịghị mma n'oge mmejọ dị oke njọ, ọbụlagodi ma ọ bụrụ na ngwá electronic dara.

Nkọwapụta igodo

Ụdị: CDADA DAM2 / DE Series (Electronic Molded Case Breaker)

Ụdị: Eletrọnịkị Molded Case Circuit Breaker

Osisi: 3P / 4P

Oke ọkụ (Ue): 400V/415V AC

Enyere aha ugbu a (N'ime): 100A - 1600A

Ngalaba Njem: Ntọhapụ eletrọnịkị dabere na Microprocessor

Ndozi okpomọkụ (Ir): 40% - 100% nke In

Ndozi ndọta (Im): 1.5× – 12× In

Uru

★ Obosara nso: 100A ruo 1600A(AC)

★ kọmpat akụkụ

★ Ọnọdụ okpomọkụ na-agbanwe agbanwe (40-100%) N'ime.

★ magnetik ntọala (1.5-12 ugboro) In.

★ Push ka njem bọtịnụ ndokwa.

★ iche isi na arcing kọntaktị

★ Wide nso nke ngwa.

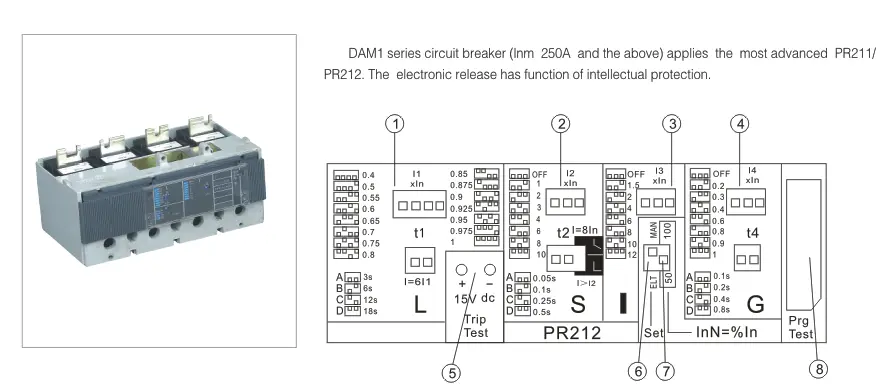

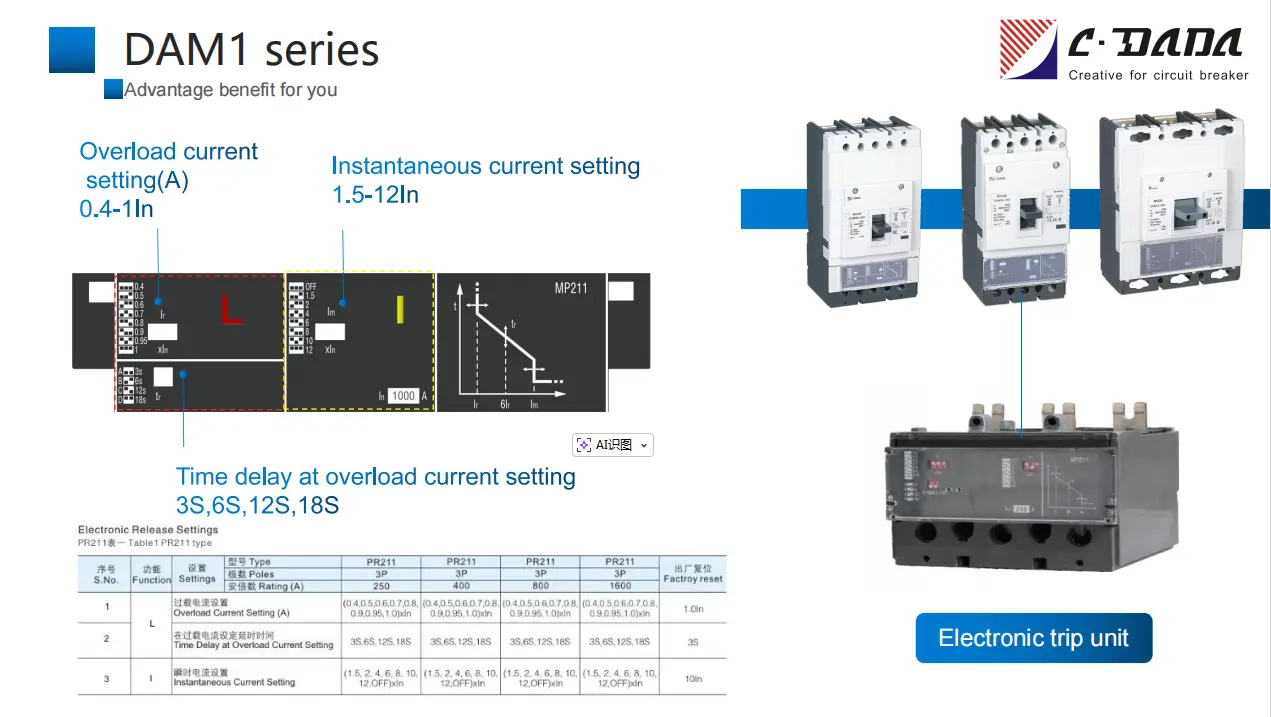

Usoro ntọhapụ eletrọnịkị

Igwe ọkụ eletrik

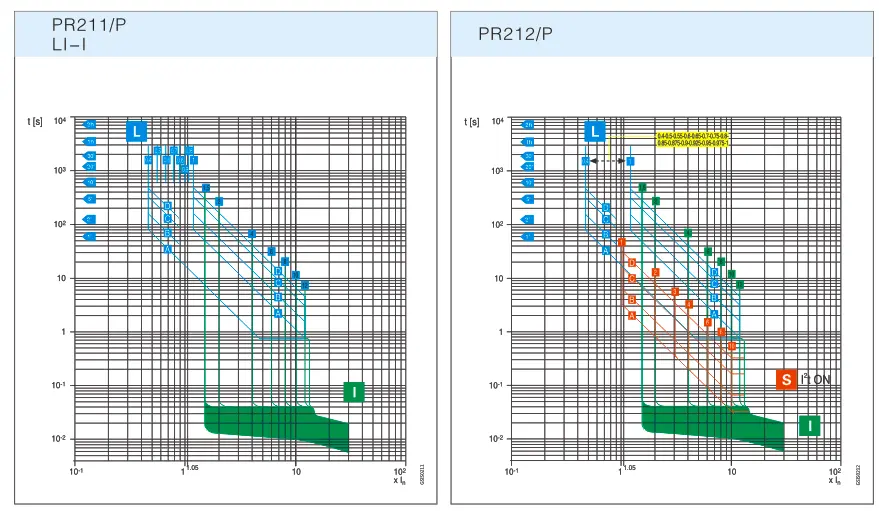

Tebụl 1 PR211 ụdị

S. Mba.

Ọrụ

Ntọala

Ụdị

PR211

PR211

PR211

PR211

nrụpụta ụlọ ọrụ

Osisi

3P

3P

3P

3P

Ogo (A)

250

400

800

1600

1

L

Bufee ntọala ugbu a (A)

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0) xN

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0) xN

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0) xN

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0) xN

1.0 n'ime

2

Oge igbu oge na Nbudata Nhazi ugbu a

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

I

Ntọala dị ugbu a ozugbo

(1.5, 2, 4, 6, 8, 10, 12, Gbanyụọ)

(1.5, 2, 4, 6, 8, 10, 12, Gbanyụọ)

(1.5, 2, 4, 6, 8, 10, 12, Gbanyụọ)

(1.5, 2, 4, 6, 8, 10, 12, Gbanyụọ)

10N'ime

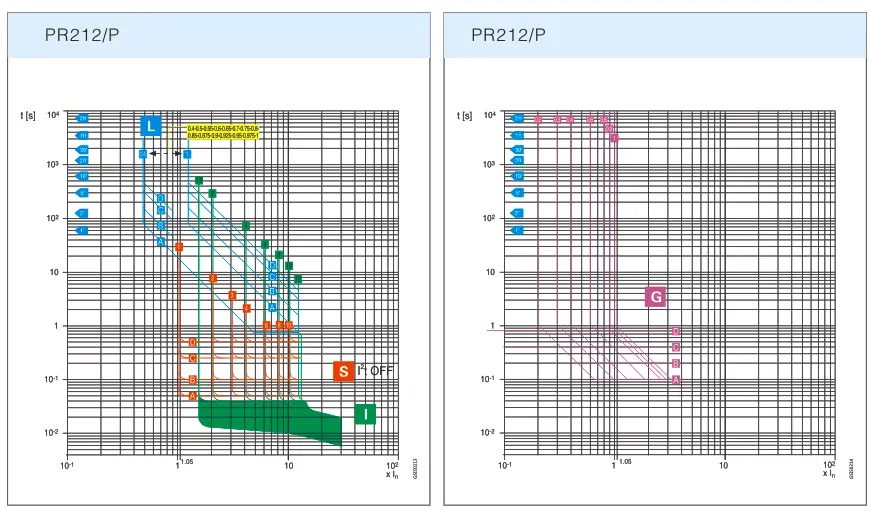

Tebụl 2 PR212 ụdị

S. Mba.

Ọrụ

Ntọala

Ụdị

PR212

PR212

PR212

PR212

nrụpụta ụlọ ọrụ

Osisi

3P

3P

3P

3P

Ogo (A)

250

400/630

800

1600

1

L

Bufee ntọala ugbu a (A)

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8) xN'ime

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8) xN'ime

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8) xN'ime

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8) xN'ime

1.0 n'ime

2

Oge igbu oge na Nbudata Nhazi ugbu a

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

S

Mpempe - Ntọala sekit ugbu a (A)

(1, 2, 3, 4, 6, 8, 10, Gbanyụọ) xIn

(1, 2, 3, 4, 6, 8, 10, Gbanyụọ) xN'ime

(1, 2, 3, 4, 6, 8, 10, Gbanyụọ) xN'ime

(1, 2, 3, 4, 6, 8, 10, Gbanyụọ) xN'ime

6N'ime

4

Oge igbu oge na nhazi sekit dị mkpụmkpụ ugbu a

0.05, 0.1, 0.25, 0,5

0.05, 0.1, 0.25, 0,5

0.05, 0.1, 0.25, 0,5

0.05, 0.1, 0.25, 0,5

0.1S

5

I

Ntọala dị ugbu a ozugbo

(1.5, 2, 4, 6, 8, 10, 12, Gbanyụọ)

(1.5, 2, 4, 6, 8, 10, 12, Gbanyụọ)

(1.5, 2, 4, 6, 8, 10, 12, Gbanyụọ)

(1.5, 2, 4, 6, 8, 10, 12, Gbanyụọ)

10N'ime

6

G

Ntọala Mmejọ Ala ugbu a (A)

(0.2,0.3,0.4, 0.6,0.8,0.9, 1.0, Gbanyụọ) xIn

(0.2,0.3,0.4, 0.6,0.8,0.9, 1.0, Gbanyụọ) xIn

(0.2,0.3,0.4, 0.6,0.8,0.9, 1.0, Gbanyụọ) xIn

(0.2,0.3,0.4, 0.6,0.8,0.9, 1.0, Gbanyụọ) xIn

1.0 n'ime

7

Oge igbu oge na Ntọala mmejọ ala

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.4S

8

Nhọrọ nke eletriki ma ọ bụ eletrọnịkị setịpụ

Ọrụ SET (gbanwee ELT/MAN)

9

A na-eji maka ịtọ ntọala ngbanwe nke ahịrị efu

InN =% Na, gbanwee 50/100

10

Socket maka ngwaọrụ elele njikọ

oghere panel

Kedu ihe kpatara ịhọrọ CDADA Electronic MCCB?

★ Ezi ọgụgụ isi, Ọ bụghị naanị akpaaka
Microprocessor na-enyocha usoro ebili mmiri dị ugbu a, na-enye ohere mgbanwe oge, oge doro anya na nchebe ozugbo-na-enweghị mkpagharị n'ihi okpomọkụ ma ọ bụ ịka nká.

★ Fail-Safe Design
Ọbụlagodi na sekit eletrọnịkị ada ada, eriri elektrọnik ozugbo na-eme ka onye na-agbaji na-eme njem n'oge sekit dị mkpụmkpụ siri ike - na-ezute ihe nchekwa nchekwa IEC 60947-2 chọrọ.

★ Elu nhazi
Oke mgbanwe mgbanwe dị ukwuu (40-100% Ir, 1.5–12× Im) na-enye ohere nchikota zuru oke na ngwaọrụ mgbago / mgbada - na-ebelata mpaghara ọpụpụ.

★ Ihe akụrụngwa na-egosi n'ọdịnihu
Dakọtara na modul nkwukọrịta nhọrọ (Modbus RTU, Profibus) maka ntinye n'ime sistemu njikwa ụlọ (BMS) ma ọ bụ grids smart.

★ Global Quality, Competition Price
Emepụtara n'okpuru ISO 9001 na Shanghai, yana asambodo mba ụwa - na-enye arụmọrụ ọkwa European na arụmọrụ ọnụ ahịa Eshia.

★ Anyị nwere a raara onwe ya nye otu nke 15 injinia lekwasịrị anya na ngwaahịa mmepe, mma, na customization.

Ngwa dị mma

Ebe data: gbochie ọdịda ntupu site na iji nzọta ahọpụtara nke ọma

Ụlọ ọgwụ: Gbaa mbọ hụ na ike anaghị akwụsị akwụsị maka usoro nkwado ndụ

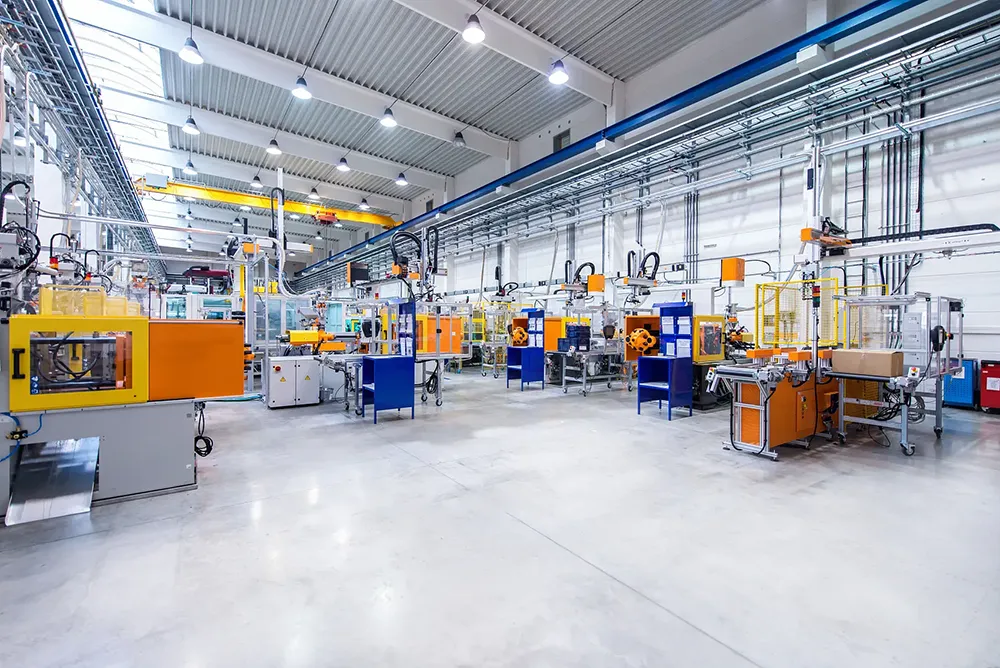

Automation ụlọ ọrụ: Jikọọ na VFDs, ndị mmalite dị nro na robotics

Ugbo anyanwụ/Ikuku: Kwado na profaịlụ ọgbọ na-agbanwe agbanwe

Ụlọ Azụmahịa Smart: Kwado nlekota ike na-enweghị mita ndị ọzọ

Ajụjụ A na-ajụkarị (FAQ)

Q1: Gịnị na-eme ka eletrọnịkị MCCB dị iche na nke thermal-magnetic?

A1: Ụdị eletrọnịkị kpụziri ikpe sekit Breakers na-eji microprocessor nyochaa njem dị ugbu a yana ịkpalite na nkenke. Ọnọdụ okpomọkụ adịghị emetụta ha, na-enye oke mgbanwe mgbanwe, ma nwee ike ịnye ndekọ data ibu - n'adịghị ka ụdị ọkụ magnetik dabere na bimetal/solenoid.

Q2: 1600A eletrọnịkị MCCB dị na nhazi 4-pole?

A2: Ee-niile CDADA eletrọnịkị MCBs sitere na 250A ruo 1600A dị na ma ụdị 3P na 4P.

Q3: Gịnị na-eme ma ọ bụrụ na eletrọnịkị njem unit ada n'oge a obere sekit?

A3: The breaker na-agụnye nkwado ndabere na mpaghara: n'oge oke mmejọ iyi (> 12× In), ihe ndọta ndọta na-akpali oghere kpọmkwem-hụ na nchekwa ọbụna na electronics offline.

Q4: Enwere m ike nyochaa ụkpụrụ dị ugbu a n'ezie?

A4: Ee-Ngalaba njem eletrọnịkị na-egosiputa ngwa ngwa, max, min, na nkezi ugbu a karịa windo oge a na-ahọrọ (dịka, 24h), bara uru maka njikwa ike.

Q5: Gịnị kpatara ịhọrọ CDADA karịa ụdị MCCB ndị ọzọ nwere ọgụgụ isi?

A5: CDADA na-enye:

● Ezi mgbanwe mgbanwe ọnụọgụ abụọ (ọtụtụ ndị asọmpi na-ejedebe Im ka ≤10×)

● Ndabere n'ibu na-adịghị mma (ọ bụghị "electronic" MCCB niile nwere nke a)

● Nha kọmpat—dabara akụkụ ihe nketa na-enweghị mgbanwe

● Pọtụfoliyo asambodo zuru ụwa ọnụ siri ike (ASTA, KEMA, CE)

● Ọnụ ahịa enyi na enyi OEM na nkwado teknụzụ na Bekee
