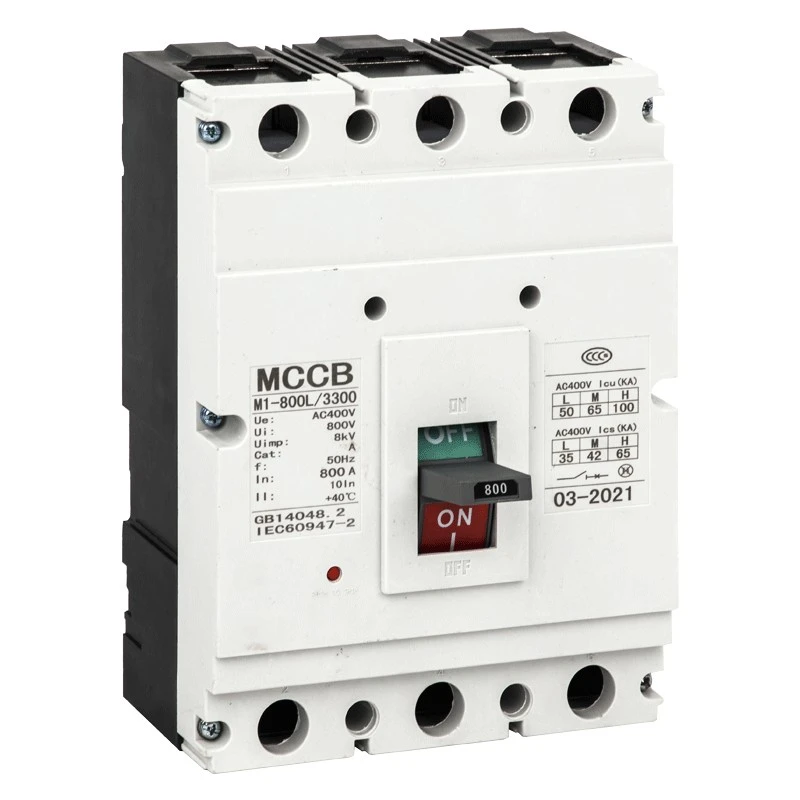

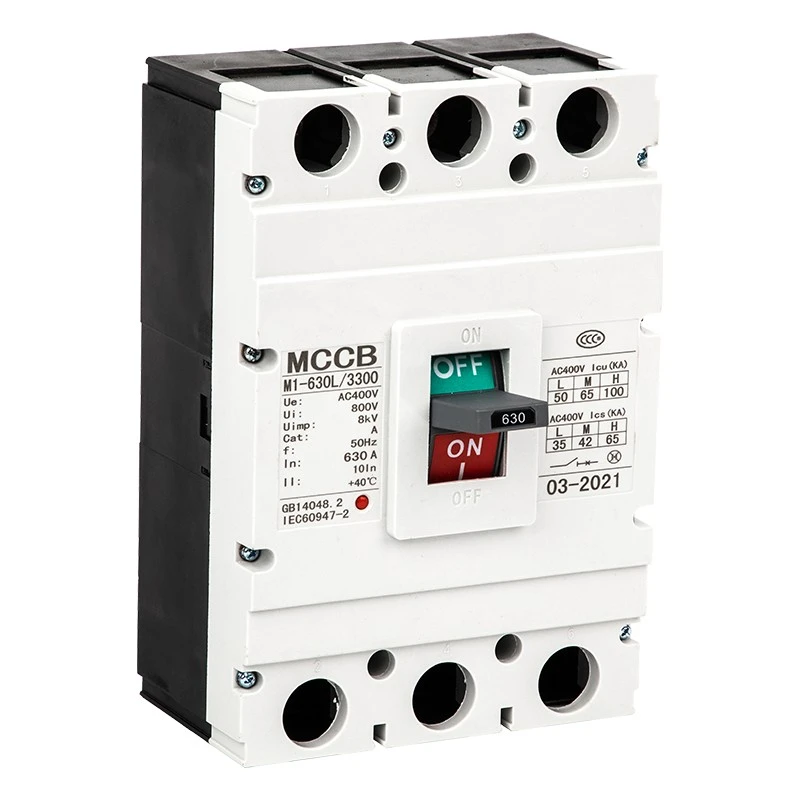

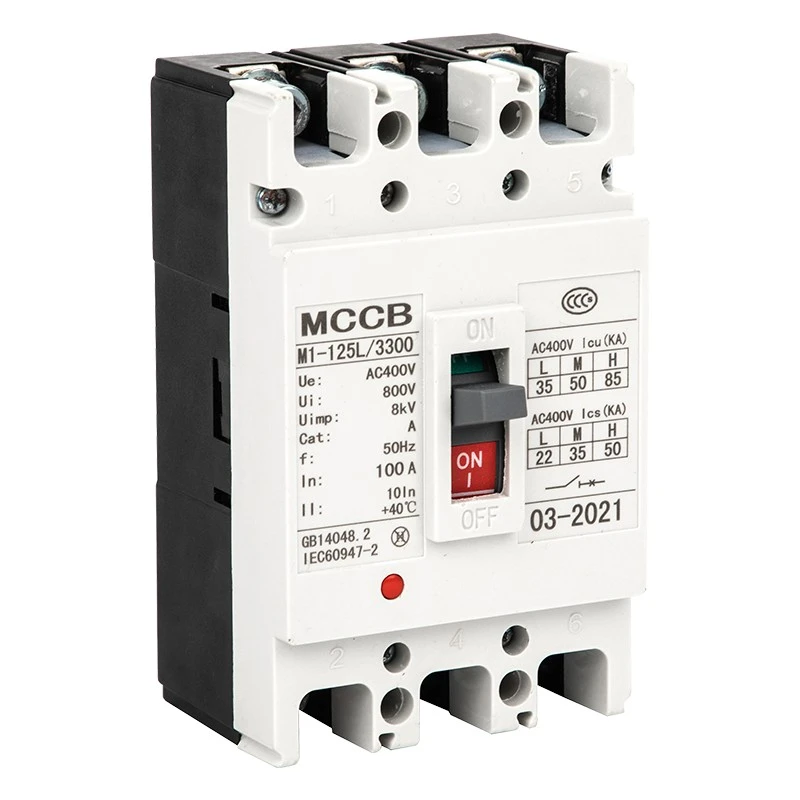

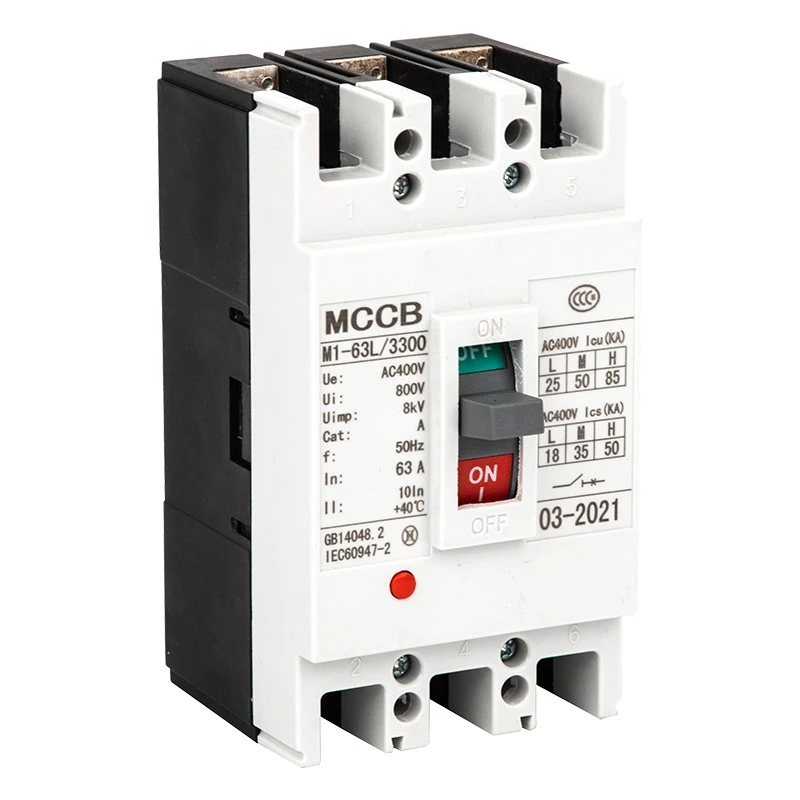

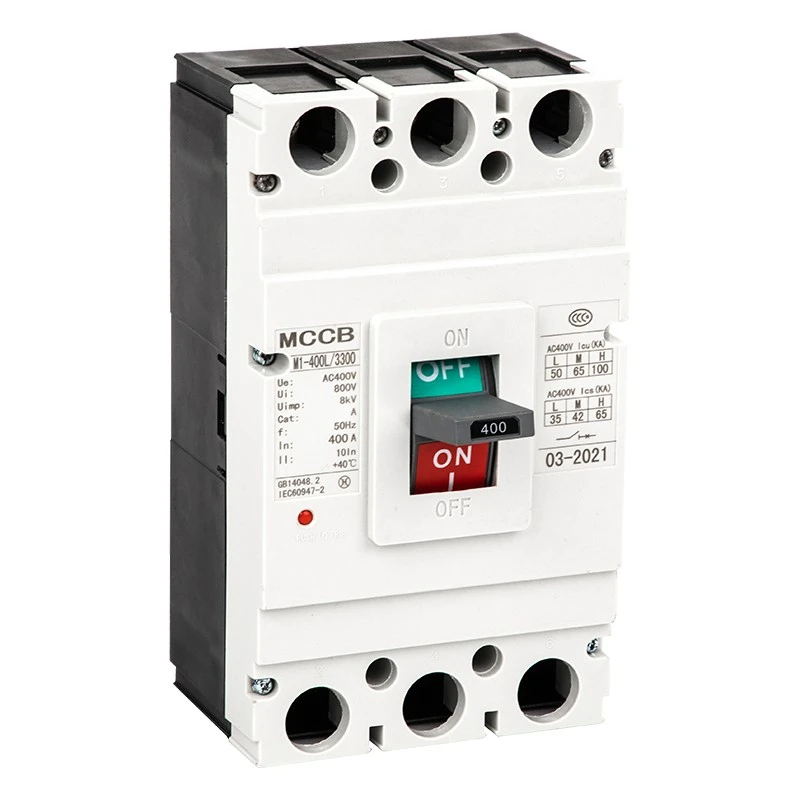

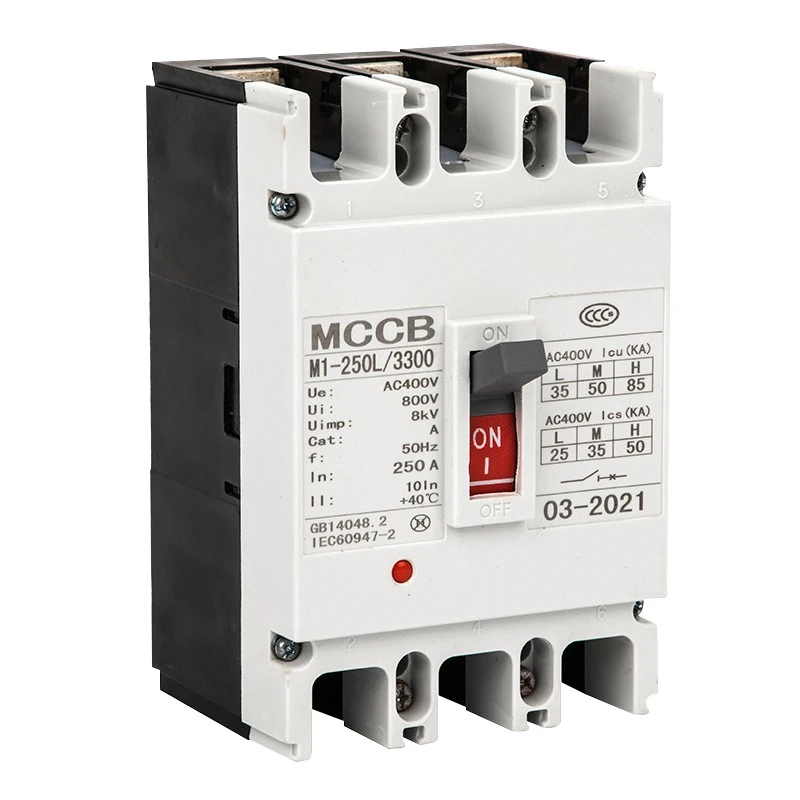

Ihe mgbaji sekit CM1 Molded
Model:DAM2 (CM1) Series
Ewubere CDADA CM1 Molded Case Circuit Breaker (MCCB) maka ịzụrụ nnukwu ego, yana asambodo IEC60947-2 yana arụmọrụ kwụsiri ike maka sistemu ike ụlọ ọrụ. CM1 MCCB na-eji nhazi ike dị elu yana usoro nkwụsịtụ a pụrụ ịdabere na ya, dị mfe ịwụnye na idowe. Ọ na-ejikọta nchebe nwere ọgụgụ isi na imewe na-adịgide adịgide, na-eme ka ndụ ọrụ dị ogologo na nkesa ike na ngwa ọrụ mmepụta ihe dị arọ.
Nke a DAM2 (CM1) usoro CM1 Molded Case Circuit Breaker bụ ngwaọrụ nchebe dị ala na-arụ ọrụ dị elu nke Shanghai DADA Electric Co., Ltd., onye na-emepụta ihe na onye na-ebubata ya na China. Site na voltaji mkpuchi mkpuchi ruru 800V, voltaji na-arụ ọrụ 400V/690V, yana akara ugbu a sitere na 63A ruo 1600A, a na-ejikarị ya maka nkesa ike, nchebe sekit, njikwa moto na mgbanwe na-adịghị adịkarị.
Usoro a na-akwado ntinye kwụ ọtọ na kwụ ọtọ, na-agbaso ọkọlọtọ IEC60947-2, ma na-enye oke ibu zuru oke, obere okirikiri na nchekwa voltaji maka akụrụngwa ike.
Njirimara ngwaahịa
★ voltaji mkpuchi mkpuchi: 800V; Voltage arụ ọrụ: 400V/690V
★ dị ugbu a: 63A, 100A, 225A, 400A, 630A, 800A, 1250,1600A
★ agbasa ikike: L ọkọlọtọ, M ọkara, H elu na-agbaji ụdị
★ Thermal-magnetic & electromagnetic sọrọ ntọhapụ ụdịdị
★ vetikal / kehoraizin echichi, adabara iche ojiji
★ Okpomọkụ gburugburu ebe obibi: -5℃~+40℃
★ elu ≤2000m, mmetọ ogo 3
Ngwa
A na-etinye CDADA CM1 Molded Case Circuit Breaker na ụlọ ọrụ mmepụta ihe na sistemụ nkesa ike obodo, gụnyere ụlọ ọrụ, ụlọ, ebe data, ọdụ ọkụ, akụrụngwa, akụrụngwa akụrụngwa, na igbe nkesa ike. A na-ejikwa ya maka nchebe moto, ntụgharị sekit, na ọkụ ọkụ dị mma na-ewu, metallurgy, petrochemical na ndị ọzọ.
Nka nka
★ Ụkpụrụ: IEC60947-2, GB14048.2
★ Ugboro: AC 50Hz/60Hz
★ Osisi: 1P,2P, 3P, 4P
★ Mwepụta: Thermal-magnetic (okpukpu abụọ), electromagnetic (ozugbo)
★ Ntọala ozugbo: Ụdị nkesa 10In ± 20%; Ụdị moto 12In± 20%
★ nwụnye: n'ihu wiring, n'azụ wiring, nkwụnye ụdị
★ Ọrụ: ntuziaka, electric arụ ọrụ usoro
|
Nlereanya |
Osisi |
Enyere ugbu a (A) |
Enyere aha arụ ọrụ voltaji (V) |
Enyere aha mkpuchi voltaji (V) |
Enyere oke mkpụmkpụ - ikike imebi sekit (Icu) |
Ntugharị ọkụ anya (mm) |
||
|
Nwale voltaji (V) |
Icu (kA) |
Ics (kA) |
||||||
|
DAM2L-63 |
3 |
10, 16, 20, 25, 32, 40, 50, 63 |
400 |
500 |
400×1.10 |
25 |
18 |
0 |
|
DAM2M-63 |
3,4 |
50 |
35 |
|||||
|
DAM2L-100 |
3,4 |
16, 20, 25, 32, 40, 50, 63, 80, 100 |
400 |
800 |
30 |
22 |
≤50 |
|
|
DAM2M-100 |
2,3,4 |
50 |
35 |
|||||
|
DAM2H-100 |
3 |
85 |
50 |
|||||
|
DAM2L-100 |
3,4 |
690 |
10 |
5 |
||||
|
DAM2M-100 |
2,3,4 |
20 |
10 |
|||||
|
DAM2L-225 |
3,4 |
100, 125, 140, 160, 180, 200, 225 |
400 |
800 |
35 |
25 |
||
|
DAM2M-225 |
2,3,4 |
50 |
35 |
|||||
|
DAM2H-225 |
3 |
85 |
50 |
|||||
|
DAM2L-225 |
3,4 |
690 |
10 |
5 |
||||
|
DAM2M-225 |
2,3,4 |
20 |
10 |
|||||
|
DAM2L-400 |
3 |
225, 250, 315, 350,400 |
400 |
800 |
50 |
35 |
≤100 |
|
|
DAM2M-400 |
3,4 |
65 |
42 |
|||||
|
DAM2H-400 |
3 |
100 |
65 |
|||||
|
DAM2L-400 |
3 |
690 |
15 |
8 |
||||
|
DAM2M-400 |
3,4 |
20 |
10 |
|||||
|
DAM2L-630 |
3 |
400, 500, 630 |
400 |
800 |
50 |
35 |
||
|
DAM2M-630 |
3,4 |
65 |
42 |
|||||
|
DAM2H-630 |
3 |
100 |
65 |
|||||
|
DAM2L-630 |
3 |
6910 |
15 |
8 |
||||
|
DAM2M-630 |
3,4 |
20 |
10 |
|||||
|
DAM2M-800 |
3 |
630,700,800 |
400 |
800 |
75 |
50 |
||
|
DAM2H-800 |
3 |
100 |
65 |
|||||
|
DAM2M-800 |
3 |
4690 |
30 |
15 |
||||
|
DAM2-1250 |
3 |
800, 1000, 1250 |
400 |
800 |
85 |
42 |
||
|
DAM2-1250 |
3 |
690 |
25 |
12.5 |
||||
Ngosipụta & Nwụnye akụkụ
CM1 MCCB anyị na-enye data akụkụ zuru oke maka ụdị 63A-1600A, gụnyere wiwi n'ihu, eriri azụ na ụdị nkwụnye. Ogo etiti dị iche iche (63/100/225/400/630/800/1250/1600) dakọtara akụkụ H, H1, H2 maka nrụnye kabinet ọkọlọtọ. A na-ahazi ịdị elu usoro ọrụ ntuziaka na ọkụ eletrik maka mgbakọ dị mfe.
Ngwa & Ọrụ
Ngwa ime ime
★ Ntọhapụ Shunt: 70%-110% voltaji gosiri maka ọbịbịa a pụrụ ịdabere na ya
★ Ntọhapụ n'okpuru voltaji: 35%-70% voltaji ọdịda maka nchebe akpaka
★ kọntaktị enyemaka & kọntaktị mkpu: nzaghachi mgbaàmà na mkpu mmejọ
★ Ntọhapụ nke mita a kwụrụ ụgwọ mbụ: igbu oge 0.5–2s
Ngwa mpụga
★ Usoro ọrụ ntuziaka
★ Igwe ọkụ eletrik (moto) arụ ọrụ usoro
★ Nkeji separators, arịọnụ kposara, busbars ngwa

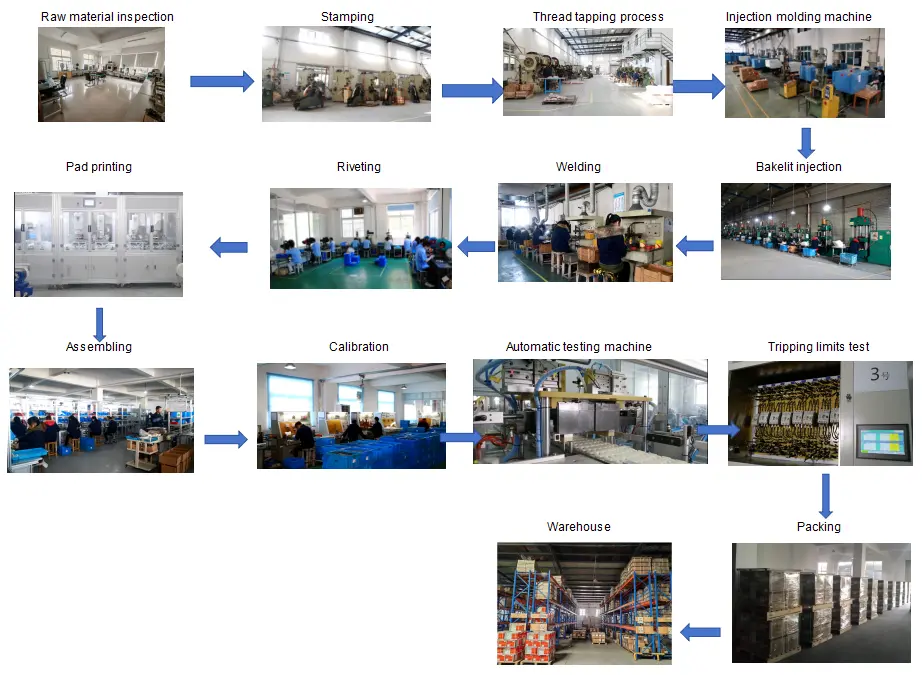

Usoro njikwa ogo
Nyocha ihe onwunwe → Nhazi mmepụta → Ahịrị mgbakọ → Nnwale njirimara njem → Nnwale ịrị elu okpomọkụ → Nnwale oge dị mkpirikpi → Nnwale ịka nká → Nleba ọdịdị & akụkụ → Nkwakọ ngwaahịa → Nyocha ikpeazụ tupu mbupu

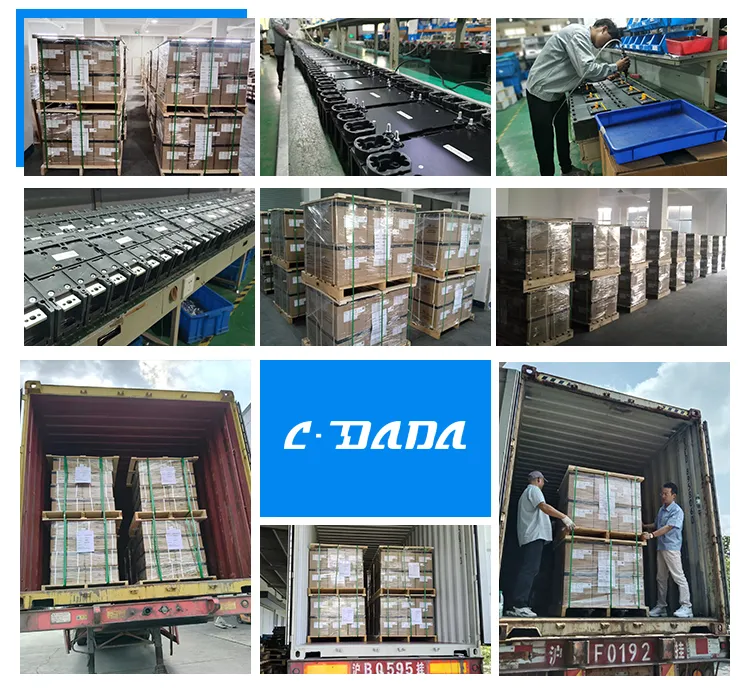

Nkwakọ ngwaahịa & Mbupu
★ Standard mbupụ katọn + osisi pallet maka mma njem
★ Label: nlereanya, ugbu a, ogwe osisi, nke ukwu, akwụkwọ
★ Kwesịrị ekwesị maka ụgbọ mmiri, ikuku na ala lọjistik
Asambodo
IEC60947-2, GB14048.2, CE, CB, ROHS na nkwado mba ụwa ndị ọzọ.

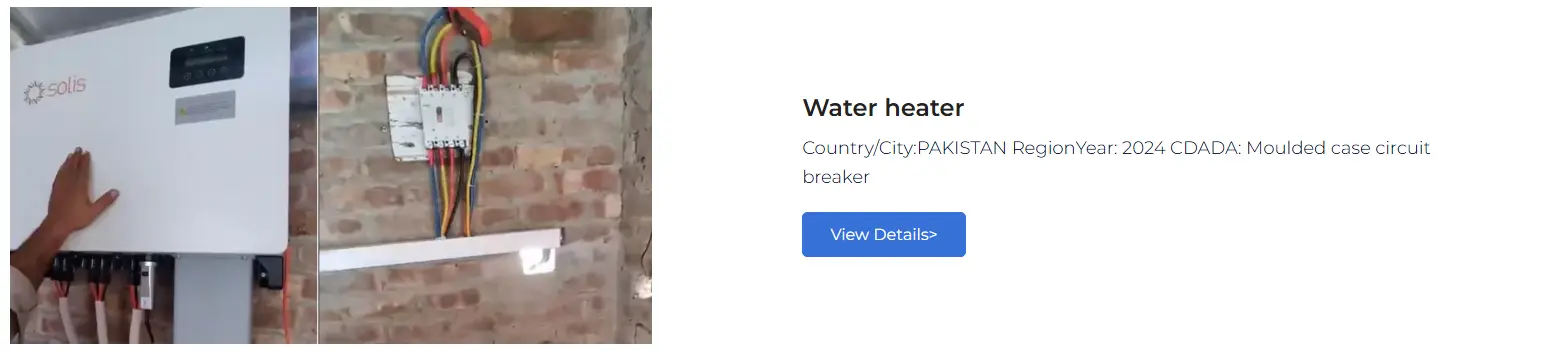

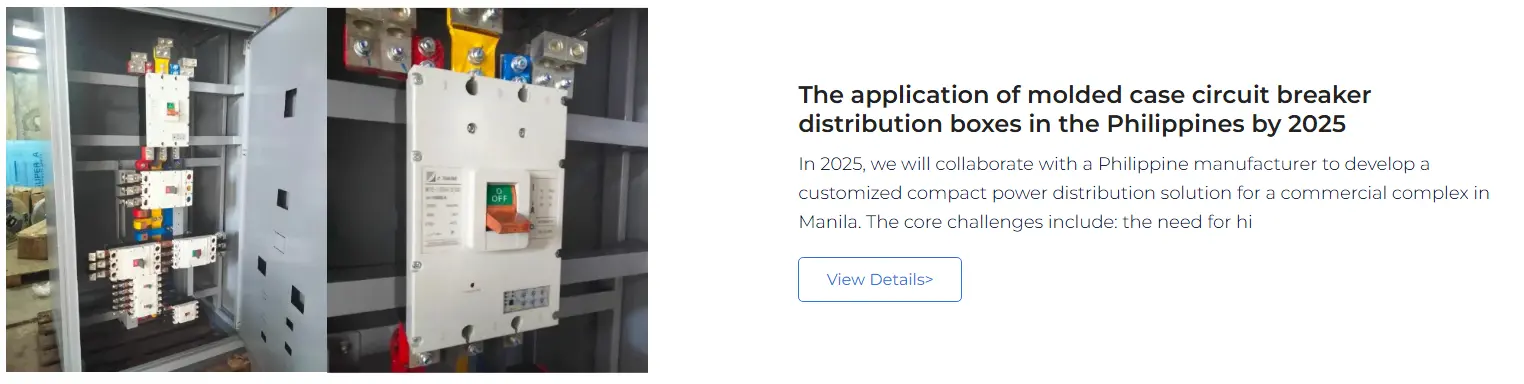

Okwu mmekọrịta ndị ahịa
Enyere CDADA DAM2 usoro MCCB nye ndị ahịa ụwa niile, gụnyere ndị na-etinye usoro nkesa ike, ndị na-emepụta akụrụngwa ụlọ ọrụ, ụlọ ọrụ switchgear, ndị na-arụ ọrụ ihe owuwu na ụdị OEM na Europe, Ndịda Ebe Ọwụwa Anyanwụ Eshia, Middle East, Africa na South America. Anyị na-enye nnukwu ọkọnọ kwụsiri ike yana ngwọta ahaziri maka ndị mmekọ ogologo oge.
